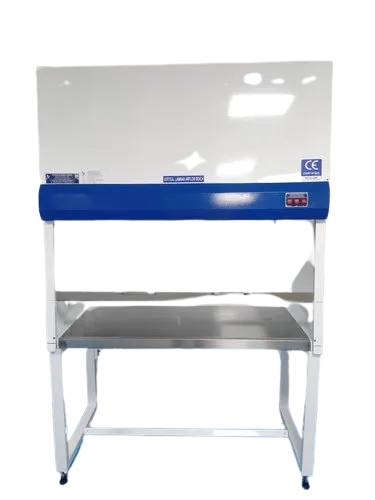

LAMINAR AIR FLOW

INTRODUCTION

A laminar flow cabinet, also known as a laminar flow hood or clean bench, is a piece of laboratory equipment that provides a sterile working environment for handling of samples or cultures. The laminar flow operates by passing air through a HEPA (high-efficiency particulate air) filter, which removes particles and contaminants from the air. The filtered air is then passed over the work surface in a laminar, or unidirectional, flow to maintain a sterile environment.

Laminar air flow are commonly used in microbiology, cell culture, and molecular biology applications where contamination must be minimized. They are often used for aseptic techniques, such as working with sterile cell cultures or preparing PCR reactions. The design of the laminar flow chamber can vary, with some models being portable and others being large, permanent fixtures. Some models also include UV lights to sterilize the work surface between uses.

SPECIFICATION

Laminar Air Flow (Vertical/Horizontal) STANDARD SIZE & TECHNICAL DATA
Air Flow: 90±20% FPM
Pre-Filter: 90% down 10µ
HEPA Filter: D.O.P. tested having >99.97% down to 0.3µ
Noise level: Less than 65db
Light level: Exceed 100ft candles in work Area
Vibration: 0.0001’’ average displacement on work table
Power Supply: 230V / 50Hz Single phase AC
UV Lamp: 15/30W, make Phillips Holland
Switches: Microprocessor based switches for blower fluorescent light & UV light with LCD back light display
Work table: Made of SS-304, cock for gas on work table.
Cabinet: The body is made of laminated board covered sun mica from outside & epoxy painted from inside/ SS 304/MS Powder coated.
Heavy duty: Dynamically balanced motor blower Assemblies are
Blower: Mounted on anti-vibration pads
Front & Side: Acrylic Sheet (Transparent)/ polycarbonate sheet door

MODEL NO.	WORKING AREA SIZE (WxHxD)
SSW-L0102	2X2X2 ft.
SSW-L020	4X2X2 ft.
SSW-L030	6X2X2 ft.
SSW-L040	8X2X2 ft.

NOTE:- WE CAN DESIGN AND DEVELOP ACCORDING TO CUSTOMER'S REQUIREMENT
