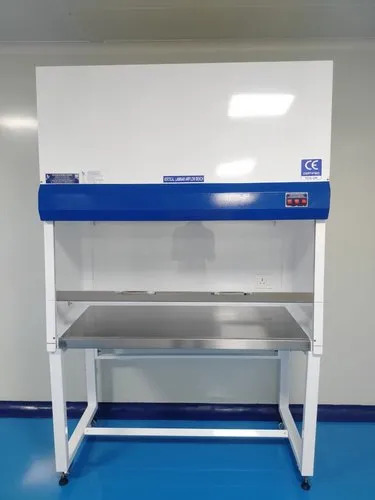

Vertical laminar air flow
A laminar flow cabinet, also known as a laminar flow hood or clean bench, is a piece of laboratory equipment that provides a sterile working environment for handling of samples or cultures. The laminar flow operates by passing air through a HEPA (high-efficiency particulate air) filter, which removes particles and contaminants from the air. The filtered air is then passed over the work surface in a laminar, or unidirectional, flow to maintain a sterile environment.
Laminar air flow are commonly used in microbiology, cell culture, and molecular biology applications where contamination must be minimized. They are often used for aseptic techniques, such as working with sterile cell cultures or preparing PCR reactions. The design of the laminar flow chamber can vary, with some models being portable and others being large, permanent fixtures. Some models also include UV lights to sterilize the work surface between uses.
Specifications for Vertical laminar air flow System
Model No.:- SSW-LV-32
1-Size – 3x2x2
2-Type – vertical laminar air flow system
3-Material– Mild steel epoxy coated frames
4-HEPA filters- 1 no,
5-Illumination- 1 x 20 w
6-Cabinetsis fabricated of corrosion resistant mild steel epoxy coated .
7-Workingtable- corrosion resistant mild steel epoxy coated .
8-Front door- Thick transparent plexin glass.
9-Air drawn through pre-filter is made to pass through highly effective HEPA (High Efficiency Particular Air) filters. The prefilter fitted extends the life of HEPA filter drastically. Fitted with HEPA Filter made from water resistant, fire retardant, imported micro fine glass fiber media; conforms to EU - 14 Grade, with an efficiency rating better than 99.999% for 0.3 μ.
These filters are designed to accommodate higher airflow volume.
10-Noiselevel- ≤ 54 dB
11-Blower and motor assembly will be statically & dynamically balanced.
12)Working area will be illuminated by fluorescent light fitted to the unit.
13)Interlocking of U.V. Germicidal Tube & Fluorescent Light with auto switch off/on Mode for blower when the door is closed/open
14)With Solid Side Walls and transparent front door. (Toughened Glass)
15)Vertical sliding glass of working area.
