AUTOCLAVE

AUTOCLAVE

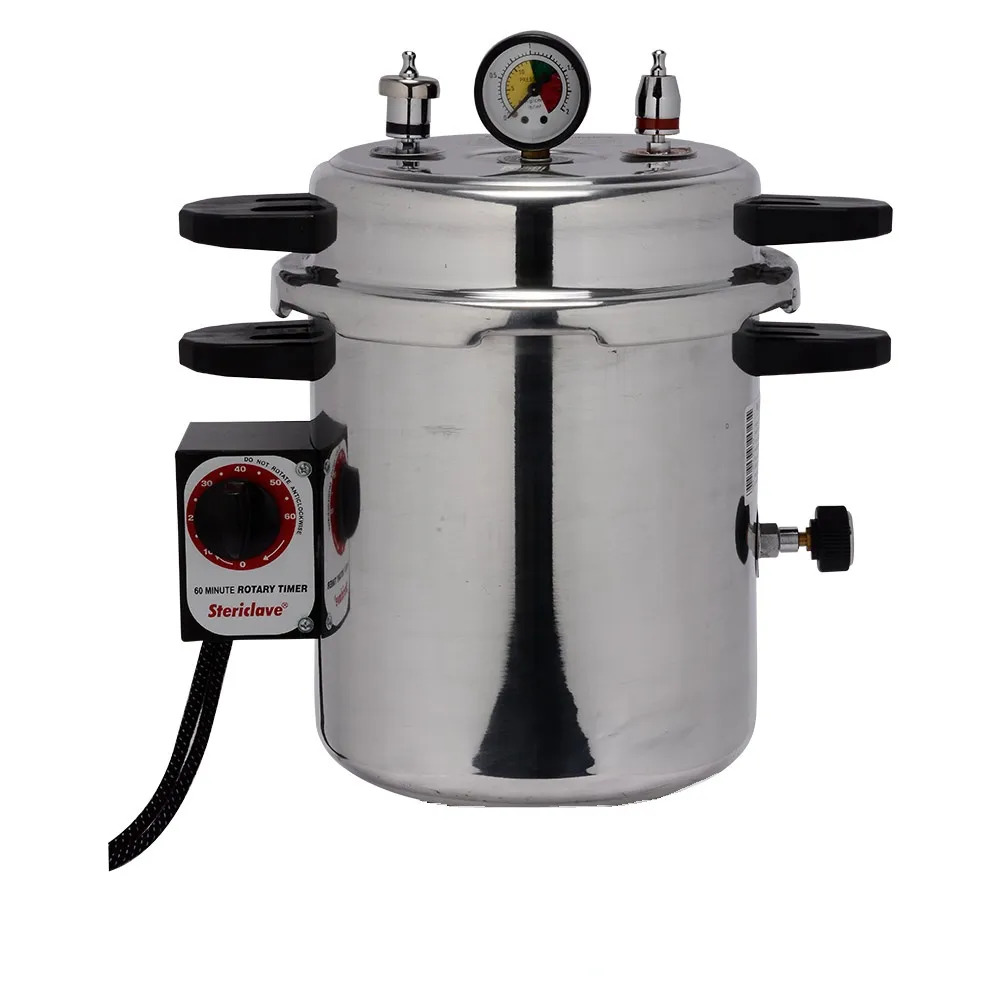

SSW-W-901 PORTABLE AUTOCLAVE

  • All body made of Stainless Steel or Aluminum.
  • Fitted with pressure gauge.
  • The unit has spring loaded safety valve of pressure adjustment and a dead weight safety valve.
  • It is hydraulically tested up to 30 PSI & is supplied with Electric
  • Fitting, Cord & Plug, supplied complete with Tripod Stand.
  • To work on 220/330Volt AC Supply

SSW-W-901A FULLY SS TABLE TOP DENTAL AUTOCLAVE

All body made of stainless steel.

  • The inner/outer chamber & boiler are made of heavy gauge S S with leak proof argon ARC welding.

The space between the outer chamber is filled with wool to minimize thermal losses.

  • Hydraulically tested to withstand 2.5 times the working pressure.

Steam boiler is fitted with water level indicator, pressure gauge, low water cut off device.

  • This afford complete safety to the working personnel against explosive opening.

An automatic vacuum breaker is fitted to all units as a standard accessory in order to break vacuum in case of steam condensation.

  • The fanged immersion type heating element made from very high grade material provides fast formation of pressure in the system & are protected through a electric low water cut off device.

The chamber is fitted with spring loaded safety valve & a dead weight release valve.

  • Sterilization temperature : 120C, 135C.

Suitable to work on 230 volts, single phase and 50Hz AC supply.

1.Vacuum Breaker
2.Tray
3.Water level indicator
Fully automatic PID Purging System

SW-W-902    VERTICAL DOUBLE WALLED RADIAL LOCKING AUTOCLAVE
Inner chamber, outer chamber & support ring are fully made of stainless steel.
Heaters cover stand & carrier/bucket are made of stainless steel.
Lid made of thick machined stainless steel plate.
Radial locking lid ensures user safety & safe locking.
Lid is fitted with pressure gauge, spring loaded safety valve, double safety
valve, manual exhaust valve, vacuum breaker as a safety device & water level indicator.
Drain valve facilitates easy cleaning of the chamber.
Molded joint less silicon rubber gasket.
All internal joints are argon arc welded, ground & polished to give crevice free internals.
Miniature circuit breaker for mains on/off plus safety of control panel.
Industrial   grade   energy   efficien heaters   reduce power bills drastically.
